Brand:Incentheat
Origin:China
Voltage:12V-600V
Power:customized
Max temperature:800℃
Tube Diameter:3MM-30MM
Certificate:CE
Material:Stainless Steel(SS304, SS316, SS321)
Warranty:1 Year

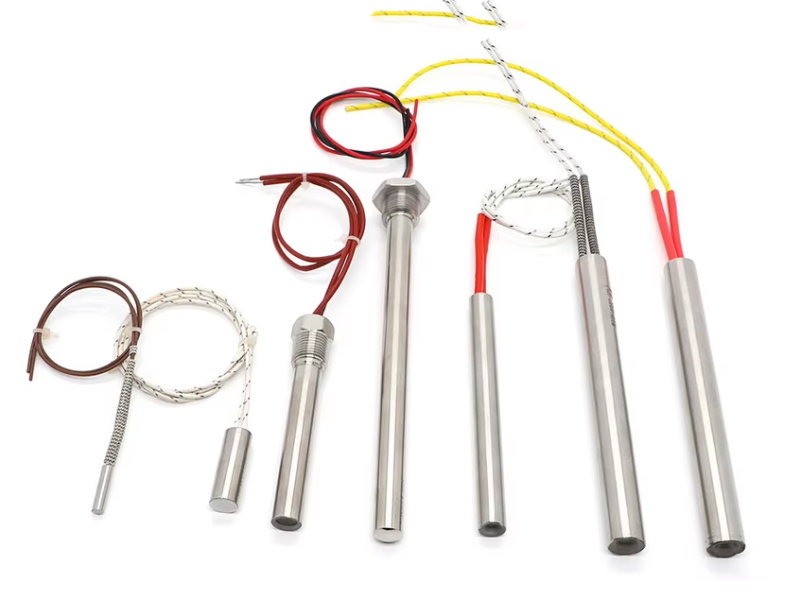

Cartridge Heater
Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.
This heater is also multi usage for air heating or immersion liquid heating with screws.
Design

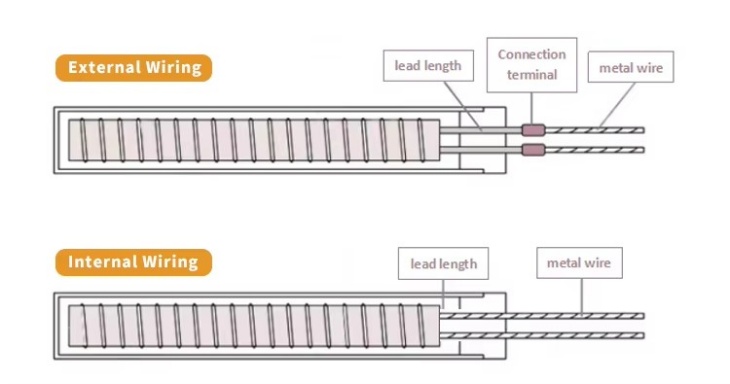

1.Internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.2.External wiring: high temperature resistance, uniform heating and high thermal conductivity.

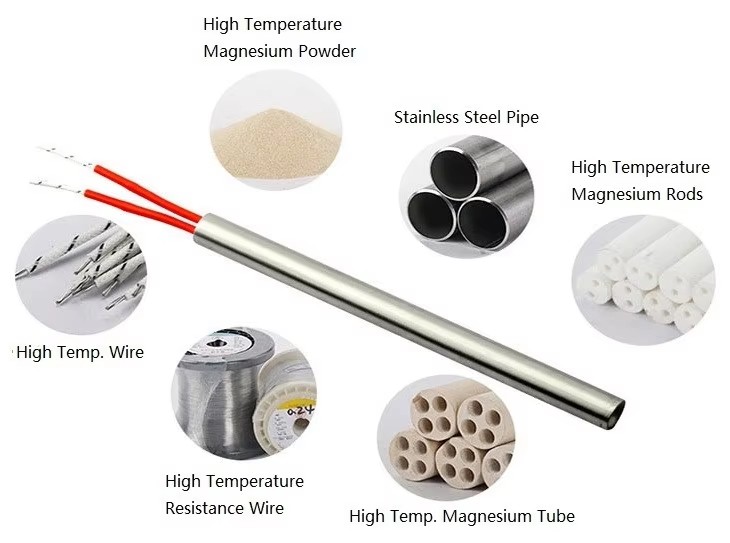

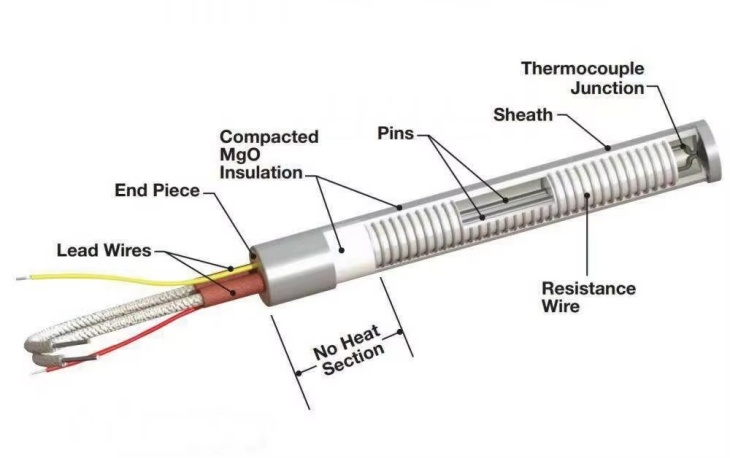

1. Tube diameter: Φ3mm-Φ30mm.
2. Tube Material: SS304/SS316/SS321/NICOLOY800,840.
3. Insulation Material: High purity MgO Power.
4. Resistance Wire element: Ni-Cr or FeCr.
5. Lead Wire Connectiom Choice: External or Internal.

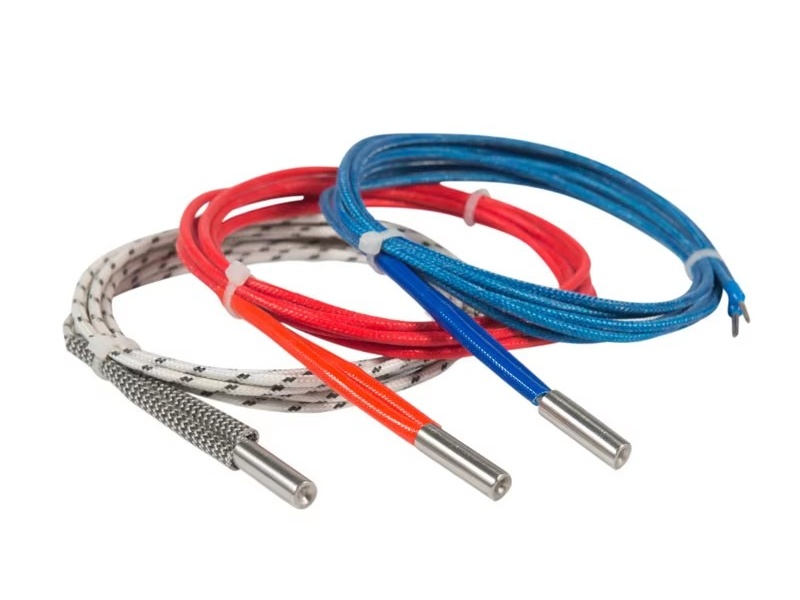

6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: PTFE or Silicone).
7. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%.
8. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon.
9. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon.
10. Leakage current <0.5MA; Insulation resistance> 30MΩ.
Advantage
1. Installation & Wiring Superiority
2.High Power Density & Fast Heating
3. Excellent Thermal Conductivity & Uniform Heat Transfer
4. Precise Temperature Control Compatibility
5. Compact Structure & Space Saving
6. Long Service Life & High Mechanical Strength

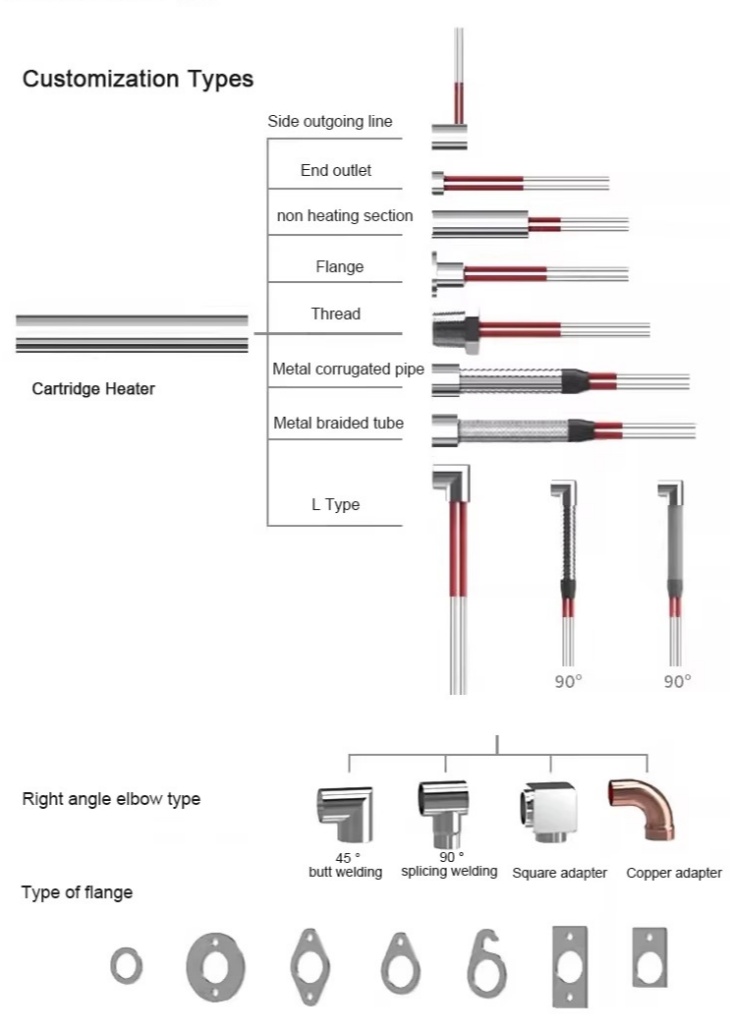

7. Flexible Customization
8. Low Maintenance Cost
9. Wide Application Adaptability
1.Plastic Molding: Heating injection molds and extrusion dies.
2.Packaging Equipment: Sealing bars and hot plates.
3.Food Processing: Heating plates and rollers.
4.Medical Equipment: Sterilization and heating components.
5.Industrial Machinery: Heating dies, nozzles, and cylinders.
