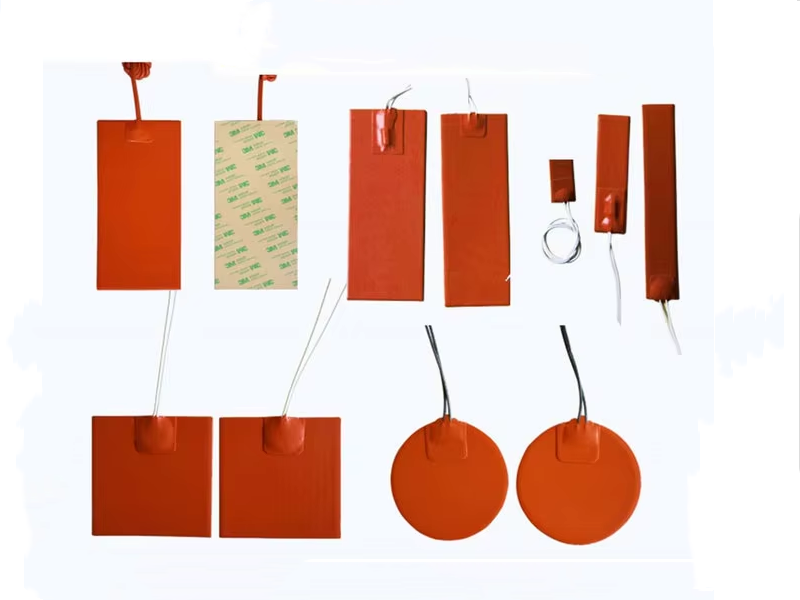

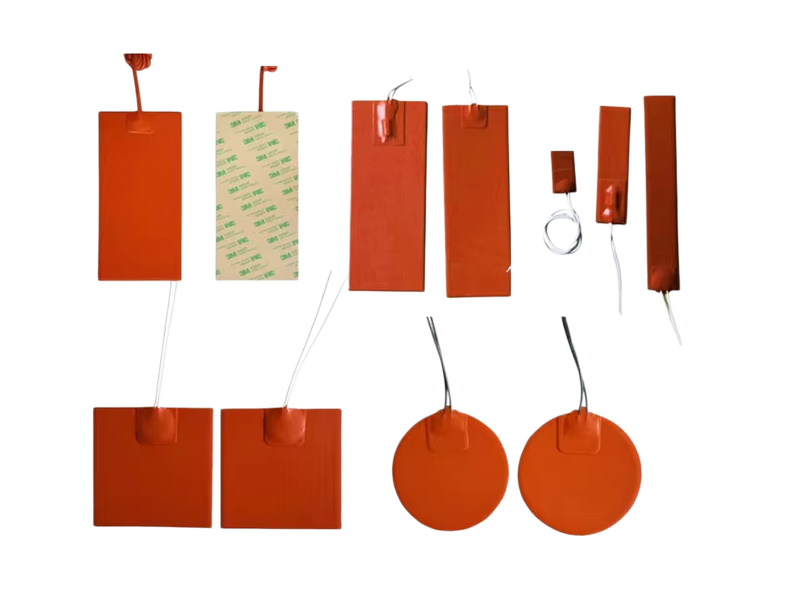

Silicone Rubber Heaters

A silicone rubber heater (also known as silicone rubber heating pad or silicone heat tracing belt) is a flexible planar electric heating component fabricated by thermocompression vulcanization, with high-temperature-resistant silicone rubber serving as the insulating outer sheath and nichrome alloy resistance heating wires embedded inside. It can be bent freely and closely attached to the outer surfaces of cylindrical, curved or special-shaped equipment. Equipped with a temperature controller, it enables precise temperature regulation, setting it apart from rigid metal electric heating tubes and heating rods.

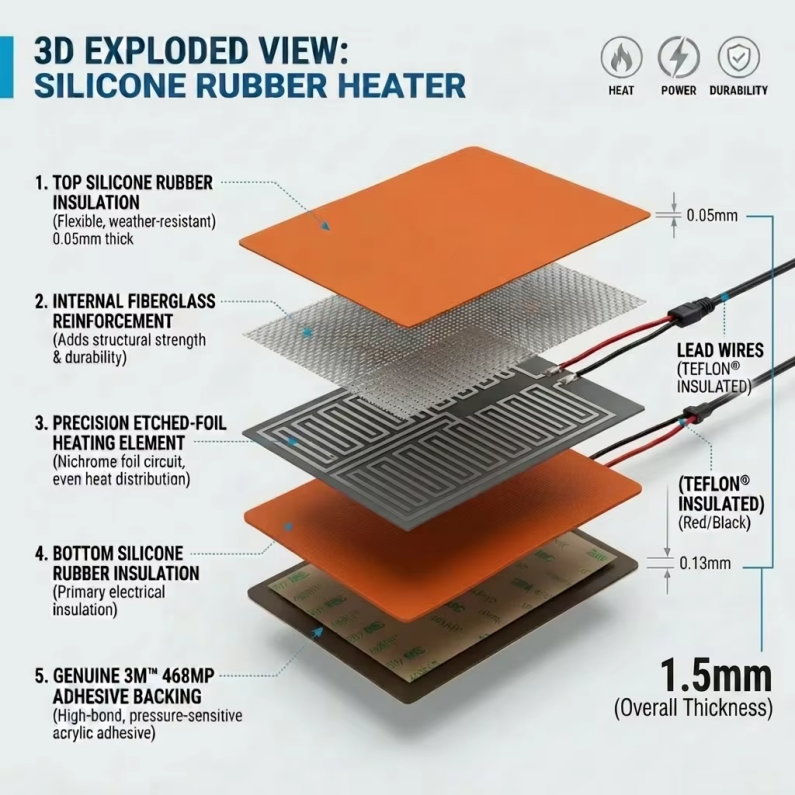

Design

Test

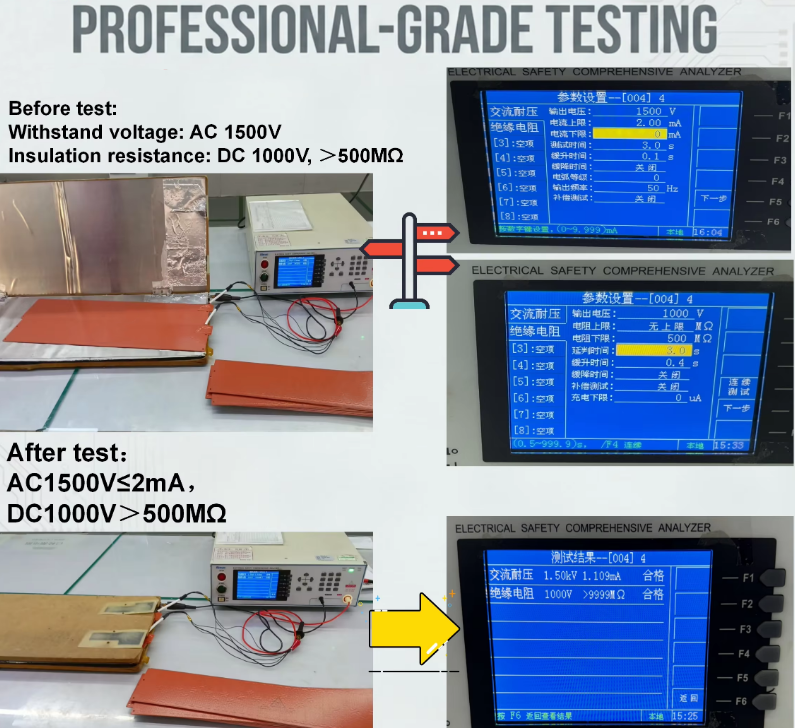

1.High-voltage Insulation Test

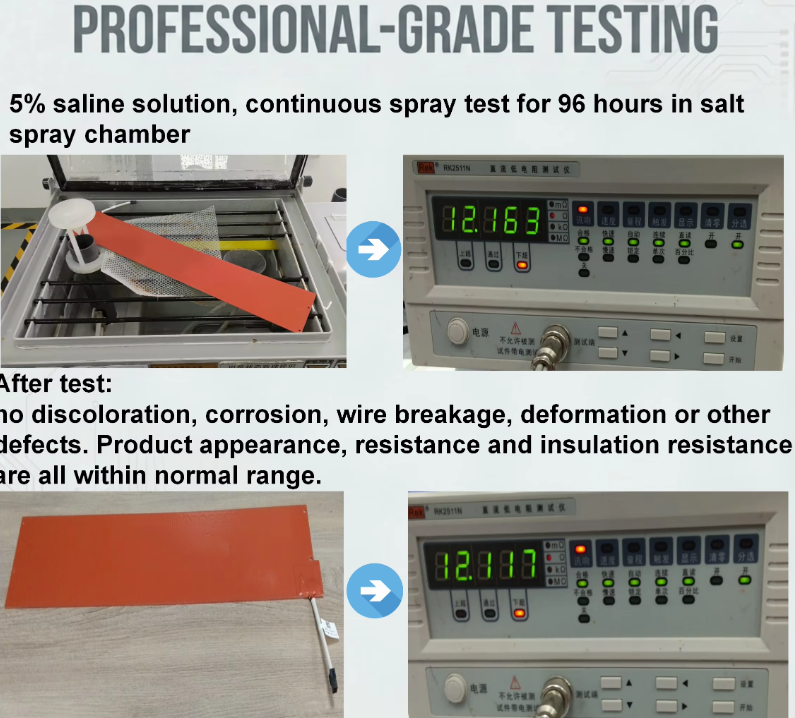

2.Salt Spray Test

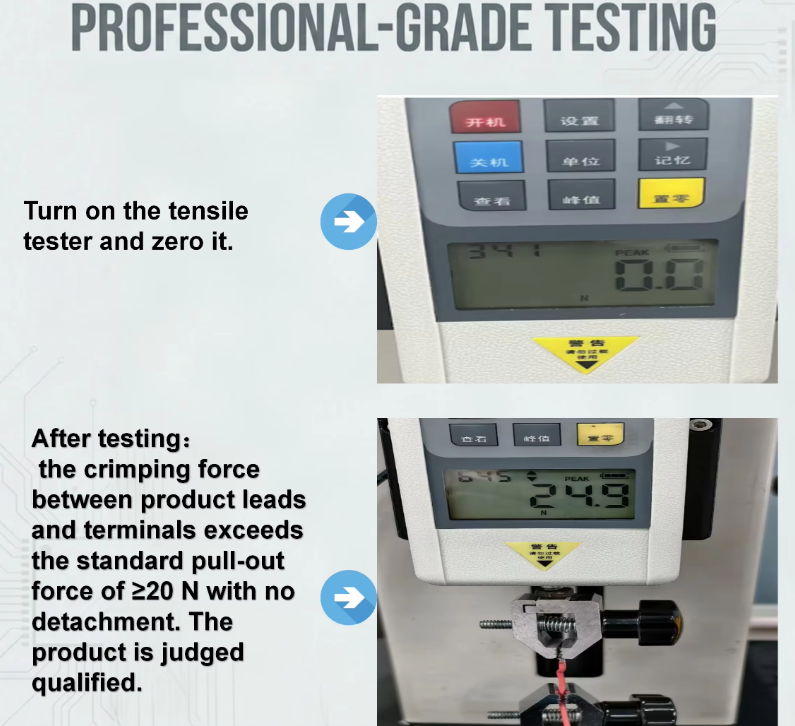

3.Strain Relief Test

Advantage

1. Heating fast and long time using.
2. Flexible and customization.
3. Waterproof and non-toxic(Waterproof grad:IP68).
4. Custom Size/Voltage/Watt/Shape.
5. We can provide free design.
6. We carry many other silicone pad heaters in different sizes and watts.

Application
1.Thermal transfer equipment.
2. Prevent condensation in motors or instrument cabinets.
3.Freeze or condensation prevention in housings containing electronic equipment, for examples: traffic signal boxes, automatic teller machines, temperature control panels, gas or liquid control valve housings.
4.Composite bonding processes.
5.Airplane engine heaters and aerospace industry.
6.Drums and other vessels and viscosity control and asphalt storage
7. Medical equipment such as blood analyzers, medical respirators, test tube heaters, etc.
8.Curing of plastic laminates.
10.Computer peripherals such as laser printers, duplicating machines.
